Magnesium (Mg) Alloy Welding Wire

收藏
  • 产品说明

Magnesium (Mg) Alloy Welding Wire


    Magnesium Alloy Welding Wire can be used in all kinds of forging Mg Alloy and casting Mg Alloy, such

 as optical instrument, aerospace, automobile spare parts and magnesium products for civil use.




Grade and Chemical Composition of The Magnesium (Mg) Alloy Welding Wire

AZ31S

GB/T   5153

Elements

Al

Zn

Mn

Si

Fe

Cu

Ni

Others, Total

Mg

Min   %

2.40

0.50

0.15







Max   %

3.60

1.50

0.40

0.10

0.005

0.05

0.005

0.3

Bal.

AZ61S

GB/T   5153

Elements

Al

Zn

Mn

Si

Fe

Cu

Ni

Others,   Total

Mg

Min   %

5.50

0.50

0.15







Max   %

6.50

1.50

0.40

0.10

0.005

0.05

0.005

0.3

Bal.

AZ91D

GB/T   5153

Elements

Al

Zn

Mn

Si

Fe

Cu

Ni

Be

Others, Total

Mg

Min   %

8.50

0.45

0.17





0.0005



Max   %

9.50

0.90

0.40

0.08

0.004

0.025

0.001

0.003

0.3

Bal.

AZ92A

AWS   A5.19-1992

Elements

Al

Zn

Mn

Si

Fe

Cu

Ni

Be

Others, Total

Mg

Min   %

8.30

1.70

0.15





0.0002



Max   %

9.70

2.30

0.50

0.05

0.005

0.05

0.005

0.0008

0.3

Bal.


Specifications of the Magnesium (Mg) Alloy Welding Wire

Grade

Specification of current   products

AZ31S

Φ1.2mm、Φ1.6mm、Φ2.0mm、Φ2.4mm、Φ3.0mm、Φ4.0mm

AZ61S

Φ1.2mm、Φ1.6mm、Φ2.0mm、Φ2.4mm、Φ3.0mm、Φ4.0mm

AZ91D

Φ1.2mm、Φ1.6mm、Φ2.0mm、Φ2.4mm、Φ3.0mm、Φ4.0mm

AZ92A

Φ1.2mm、Φ1.6mm、Φ2.0mm、Φ2.4mm、Φ3.0mm、Φ4.0mm

* We can also customize diameter and weight according to client’s requirements.

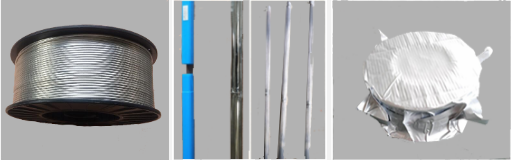

*TIG Rod or Filler Rod type 1kg each, Spools with 4 kg each.
