Pure Iron Anode

收藏
  • 产品说明

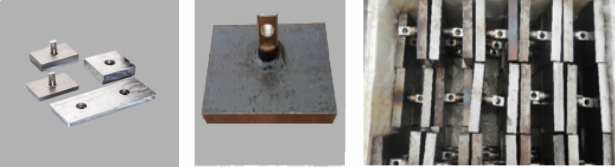

Pure Iron Anode


    Pure Iron Anode is mostly used for the protection of copper alloys of heat exchanger, fresh water facility,

 desalination plant (evaporator, brine heater) and condenser. It is also used as a positive pole that has much

less carbon than other general irons. This cast iron anode is especially useful in stress corrosion of copper

alloys. For marine equipment, Pure Iron CP system is the most cost-effective solution to control corrosion.




 Chemical Compositions of Pure Iron Anode

Carbon

0.004% max

Silicon

0.01% max

Manganese

0.2% max

Phosphorus

0.01% max

Sulphur

0.007% max

Aluminum

0.15-0.5%

Cadmium

0.1% max

Nickel

0.01% max

Copper

0.2% max

Iron

Remainder


Electrochemical Properties of Pure Iron Anode

Capacity

860 A.   Hr/KG

Current   Density

200 mA/m2


Specification and Dimension of Pure Iron Anode

Dimension

100X100X30

150X150X30

160X160X50

200X200X50

Ф100 ×50mm

Ф150× 30mm

Weight

2.0KGS

5.0KGS

9.5KGS

14.0KGS

2.5KGS

4.0KGS
