Zinc Ribbon Anode

收藏
  • 产品说明

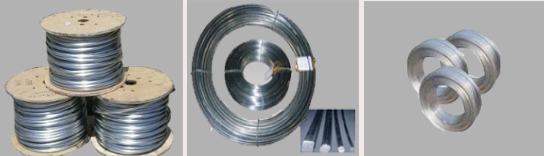

Zinc Ribbon Anode


    Zinc Ribbon Anodes are used in cathodic protection on buried pipelines, above ground storage

 tanks, and other CP systems. deyuan produces Zn ribbon anodes according to ASTM-B-418-95a

 type I and type II standard.




Specification and Dimension of Zinc Ribbon Anode

Type

A   (inch)

B(inch)

Net   Weight (lbs /feet)

DYZR-A

1

1-1/4

2.4

DYZR-B

5/8

7/8

1.2

DYZR-C

1/2

9/16

0.6

DYZR-D

11/32

15/32

0.25

*A and B for length of the diagonal lines of the diamond section.

* We can also customize anodes according to client’s requirements.



Chemical composition of Zinc Ribbon Anode

Standard

AL %

Cd %

Fe %

Pb %

Cu %

Zn

ASTM   B-418 type I

0.1-0.5

0.02-0.07

0.005   max

0.006   max

0.006   max

Bal.

ASTM   B-418 type II

0.005   max

0.003   max

0.0014   max

0.003   max

0.002   max

Bal.


Electrochemical Properties of Zinc Ribbon Anode

 Standard

Open Voltage

(-V)

Closed Voltage

(-V)

Capacity

A.h/ kg

Efficiency

ASTM   B-418 type I

1.05   min

1.00   min

353

95%

ASTM   B-418 type II

1.10   min

1.05   min

335

90%
