Aluminum Anode for seawater and offshore structures

收藏
  • 产品说明

Sacrificial Aluminum Anodes are mainly used for the metal anti-corrosion & cathodic protection of ships,

mechanical equipment, offshore engineering and port facilities in seawater as well as the protection of pipes,

cables and other facilities in mud. Aluminum Anodes are designed for optimum performance under a variety of

environmental conditions and temperature ranges. Cast in a variety of alloys, sizes and weights, Aluminum

anodes provide maximum performance in seawater and brackish environments.


Chemical Composition of Aluminum Anode, %

Alloy

Zn

In

Cd

Sn

Mg

Ti

Impurities(max)

Al

Si

Fe

Cu

Al-Zn-IN

2.0-2.6

0.01-0.02

-

-

-

-

0.1

0.1

0.006

Bal.

Al-Sn-In-Cd

2.5-4.5

0.018-0.050

0.005-0.020

-

-

-

0.1

0.15

0.01

Bal.

Al-Zn-In-Sn

2.2-5.2

0.020-0.045

-

0.018-0.035

-

-

0.1

0.15

0.01

Bal.

Al-Zn-In-Si

5.5-7.0

0.025-0.035

-

-

-

-

0.10-0.15

0.15

0.01

Bal.

Al-Zn-In-Sn-Mg

2.5-4.0

0.020-0.050

-

0.025-0.075

0.50-1.00

-

0.10

0.15

0.01

Bal.

Al-Zn-In-Mg-Ti

4.0-7.0

0.020-0.050

-

-

0.50-1.50

0.01-0.08

0.10

0.15

0.01

Bal.


Electrochemical Properties of Aluminum Anode

Type

Open Voltage

(-V)

Closed Voltage

(-V)

Capacity

A.h/kg

Efficiency

Al-Zn-In

1.05-1.18

1.05-1.12

2400 min

85% min

Al-Zn-In-Mg-Ti

1.10-1.18

1.05-1.12

2600 min

90% min

Al-Zn-In-Mg-Ti

1.10-1.18

1.05-1.12

2600 min

92% min

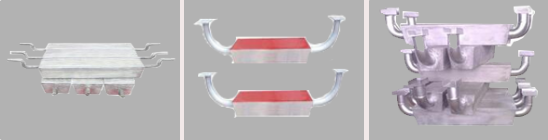

 Aluminum Anode for seawater and offshore structures



Specification and Dimension of Aluminum Anode for seawater and offshore structures

Type

DY-SA

DY-SB

DY-SC

DY-SD

Dim.

2300x(220+240)x230

1600x(220+210)x220

1500x(170+200)x180

800x(200+280)x150

Weight

275.0kg

165.0kg

144.0kg

80.0kg

Type

DY-SE

DY-SF

DY-SG

DY-SH

Dim.

1250 x (115+135)x130

900x(150+170)x160

1000x(115+135)x130

750x(115+135)x130

Weight

56.0kg

53.0kg

45.0kg

34.0kg

Type

DY-SI

DY-SJ

DY-SK

DY-SM

Dim.

1500x(148+178)x170

850x(180+220)x180

700x(160+220)x180

500x(115+135)x130

Weight

120.0kg

85.0kg

72.5kg

23.0kg

*The Dim. Refers to length x width x thickness in mm.

* We can also customize anodes according to client’s requirements.
